SKU: TR-SQ40-029

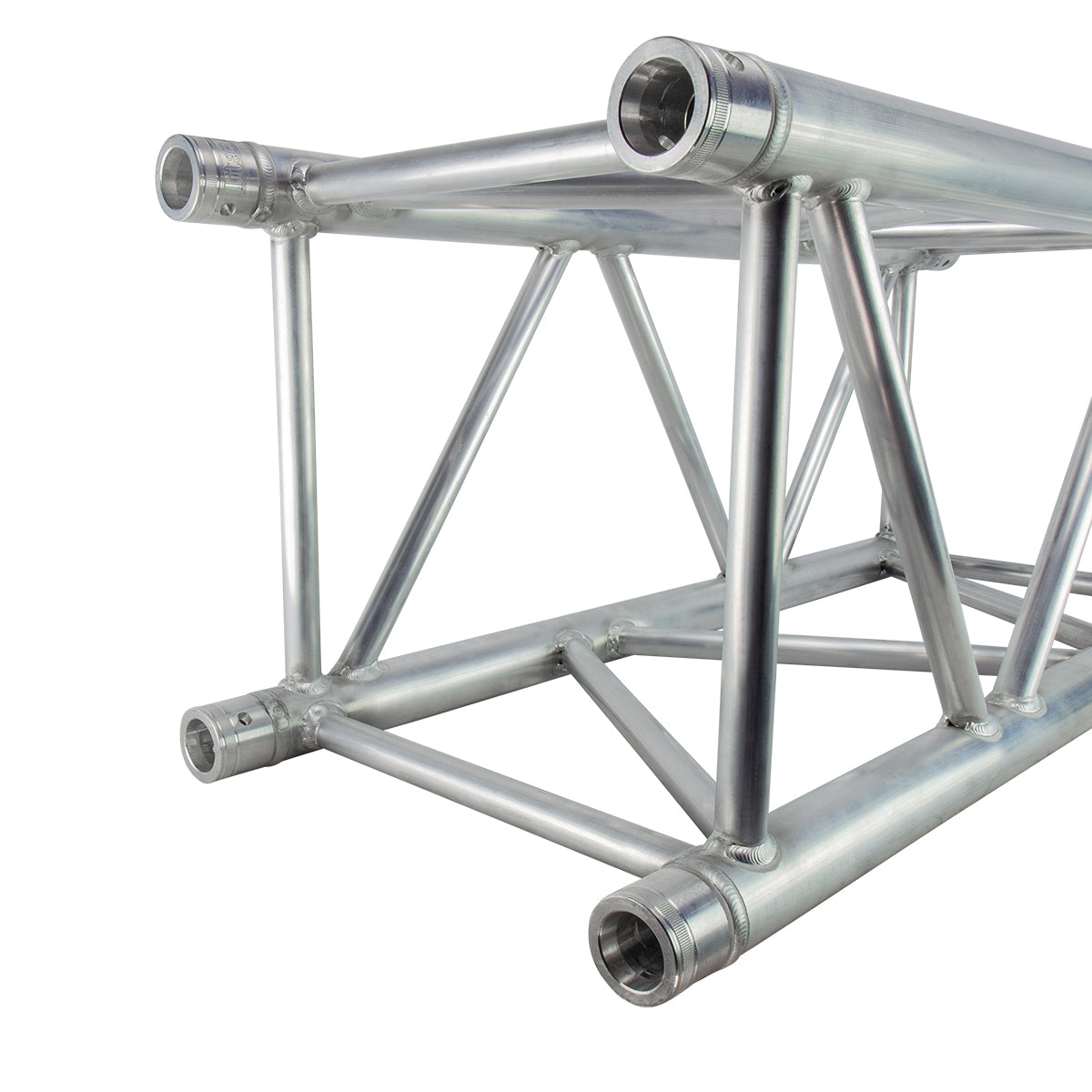

Titan AV 0.29 Metre 400mm Box Truss

$264.00 $330.00
$330.00

Titan AV 0.29 Metre 400mm Box Truss is backordered and will ship as soon as it is back in stock.

Parcel Post Delivery: $14.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Bulk Freight (Forklift Required): $110
Flat-rate shipping applies, with a forklift required at your delivery location.

Bulk Freight & Tailgate: $188
Includes delivery with a tailgate lift to safely unload your heavy items at any site without a forklift. Not sure? Call us at (07) 3423 3463.

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Description

Kindly be aware that this item is available for special order. Feel free to reach out to our sales team at sales@titanav.co for additional details.



This is one of the more popular trusses used in Australia, perfect for medium - heavy duty truss systems where general use and short - long lengths are needed. More common applications are stage production, outdoor venues, LED screens, outdoor structures, exhibitions and shop displays.

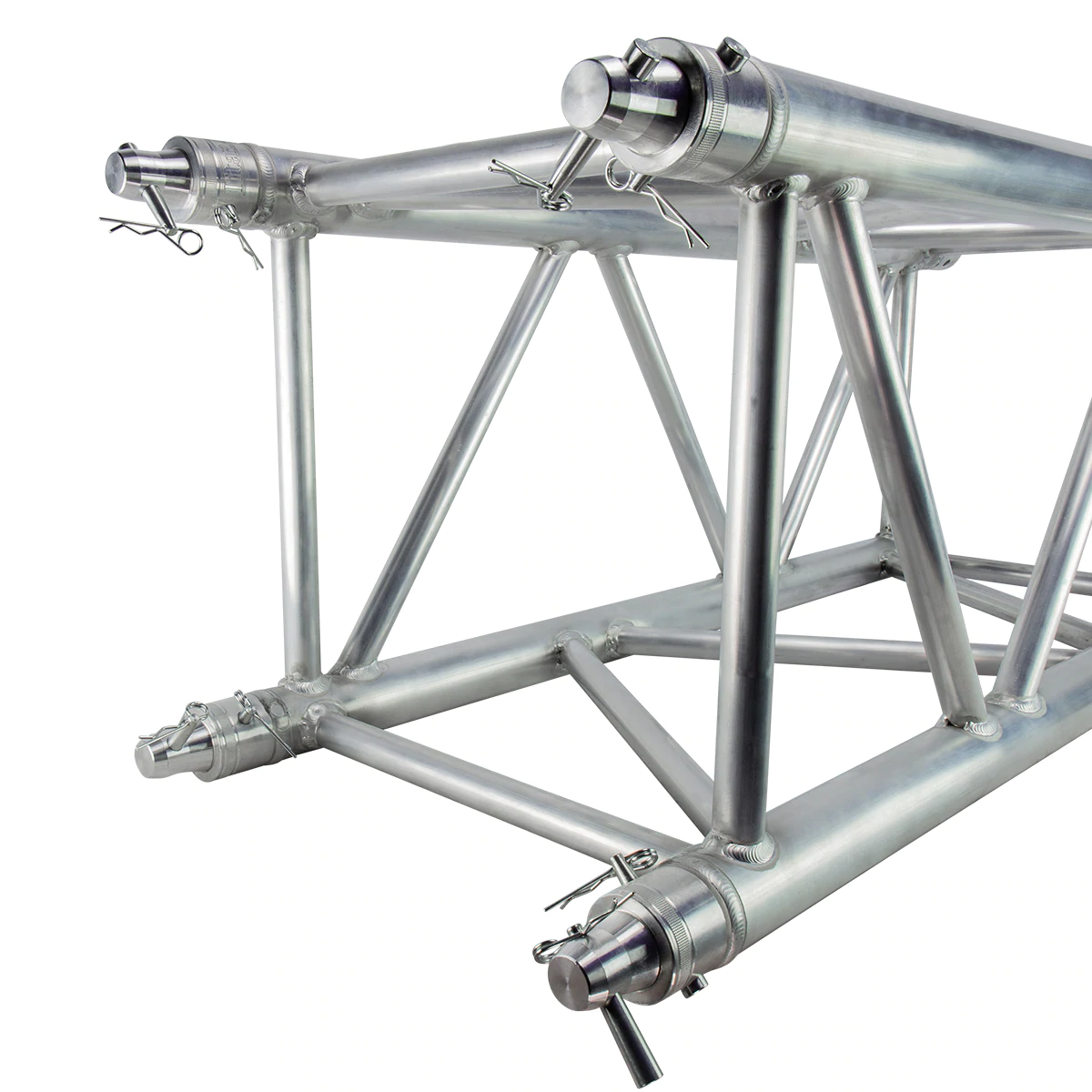

This box trussing is constructed from 6082-T6 aluminium 50x2mm main tube and 25x3mm braces. The lighting truss comes fitted with conical couplers and supplied with 4 x spigots, 8 x pins and clips. Australian engineering certification insures peace of mind when work with entertainment venues and the public.


Features:
  • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
  • Supplied fitted with conical couplers
  • Set of spigots and pins included in sale
  • Perfect for stage production, hanging LED walls, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
  • Warranty: 2 years

Specs:
  • Length: 1m
  • Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 25x3mm
  • Weight: 9.6 kg
  • 1 x 1m Box Truss 400mm



400mm Box Truss Load Table

Span Uniformly Distributed Load
(UDL)		 Deflection Centre Point Load
(CPL)		 Deflection
M KG/M MM KG MM
1 795 9.0 734.0 6.9
2 398 9.7 708.0 7.4
3 265 10.4 682.0 7.9
4 199 11.3 656.0 8.6
5 159 12.4 630.0 9.4
6 133 13.6 604.0 10.3
7 114 15.0 578.0 11.4
8 99 17.0 552.0 12.8
9 88 19.4 526.0 14.7
10 79 22.6 500.0 17.2
11 72 27.0 474.0 20.6
12 66 34.0 448.0 25.8
13 61 45.0 422.0 34.3
14 57 68.0 396.0 51.5
15 53 136 370.0 103
