SKU: TR-ST30-300

3 Metre 290mm Tri Truss

$463.25 $545.00
$545.00

Parcel Post Delivery: $14.95

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Bulk Freight (Forklift Required): $110
Flat-rate shipping applies, with a forklift required at your delivery location.

Bulk Freight & Tailgate: $188
Includes delivery with a tailgate lift to safely unload your heavy items at any site without a forklift. Not sure? Call us at (07) 3423 3463.

Note: Regional/remote areas may be subject to additional shipping charges. T&Cs.

Description

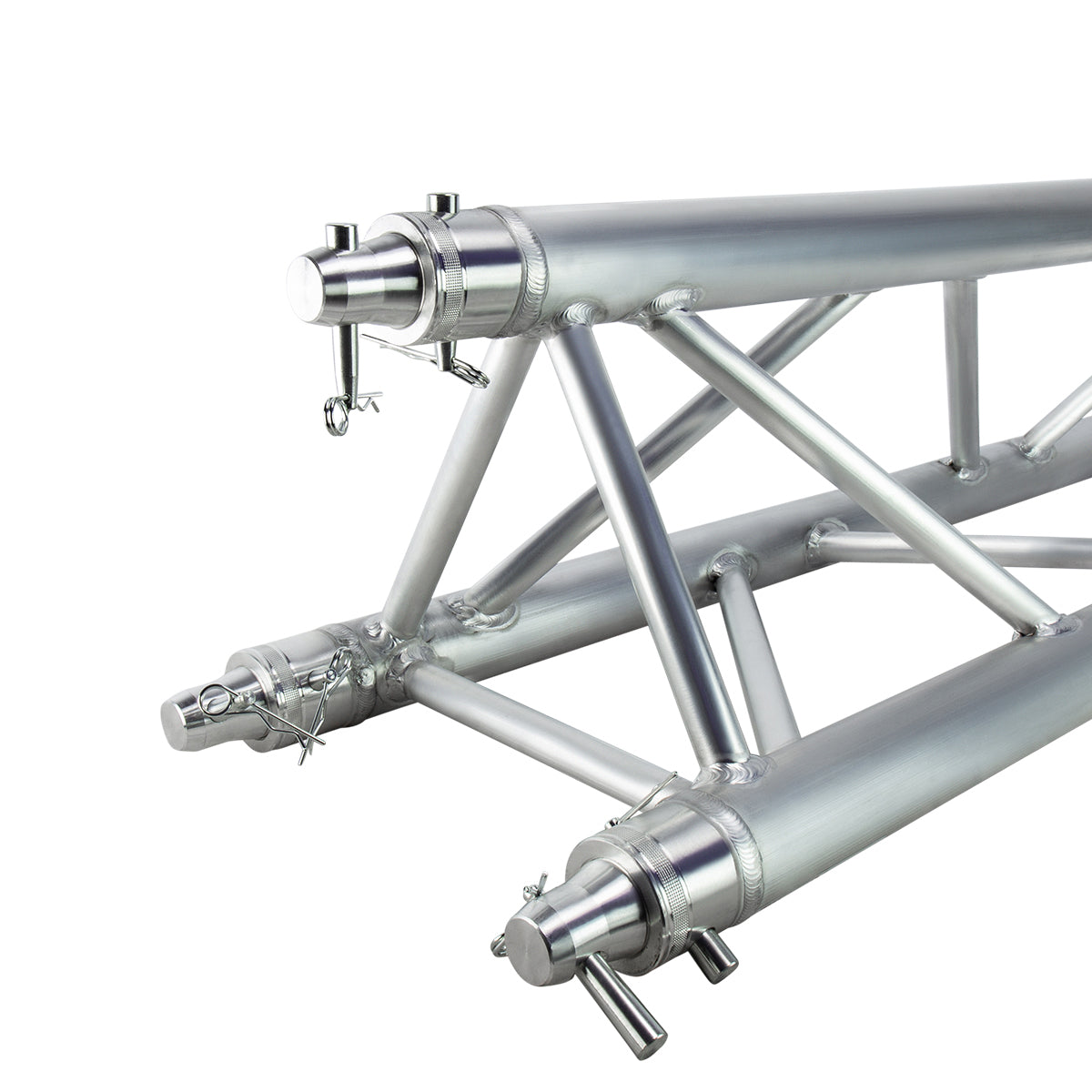

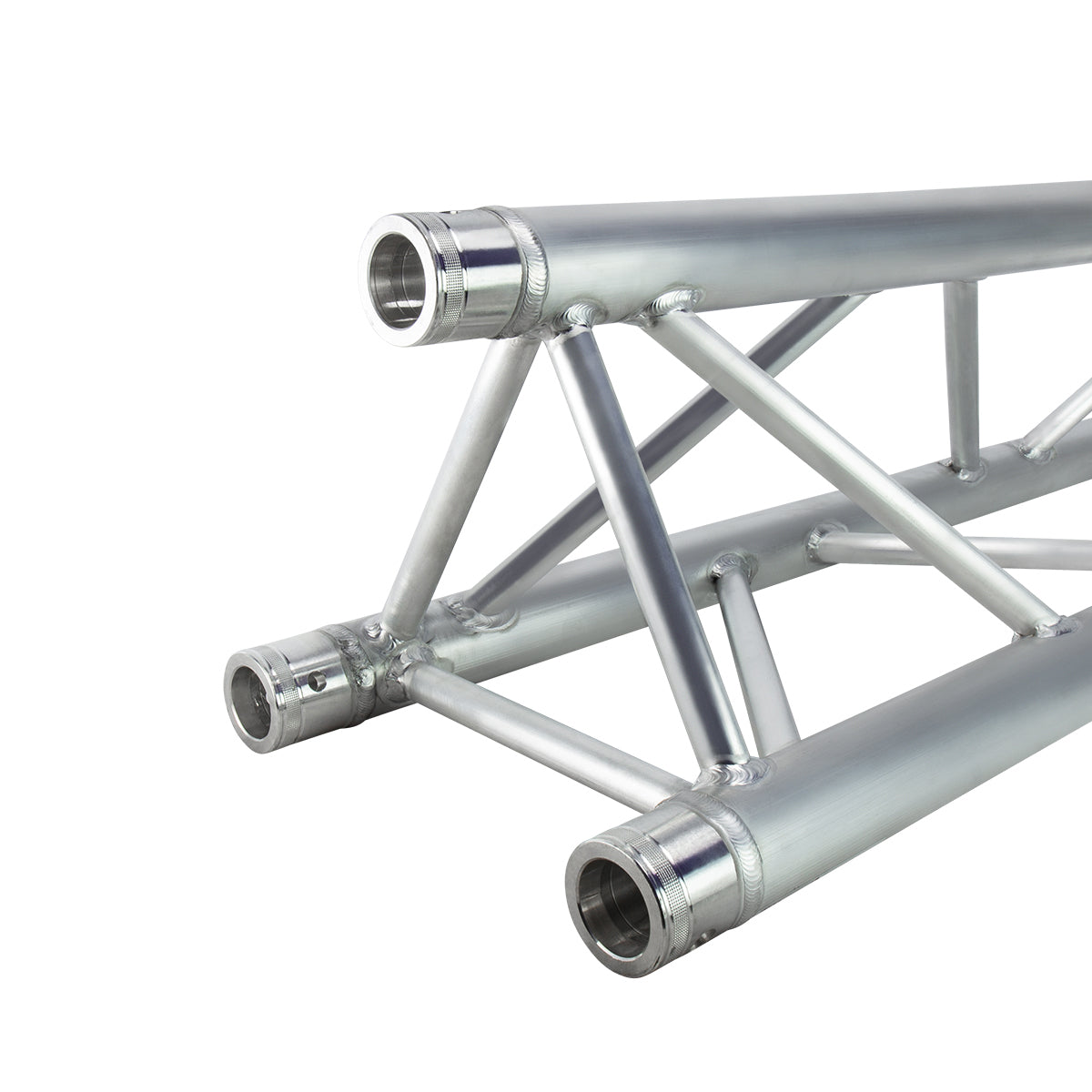

The TR-ST30 series truss is a 290 Tri truss, which has a triangular profile, is a popular choice for lighting and decorative applications. Tri Truss is often referred to as a multipurpose truss because of its low volume and versatile design making it suitable for installation, low intensity rental (Indoor) and exhibition markets.

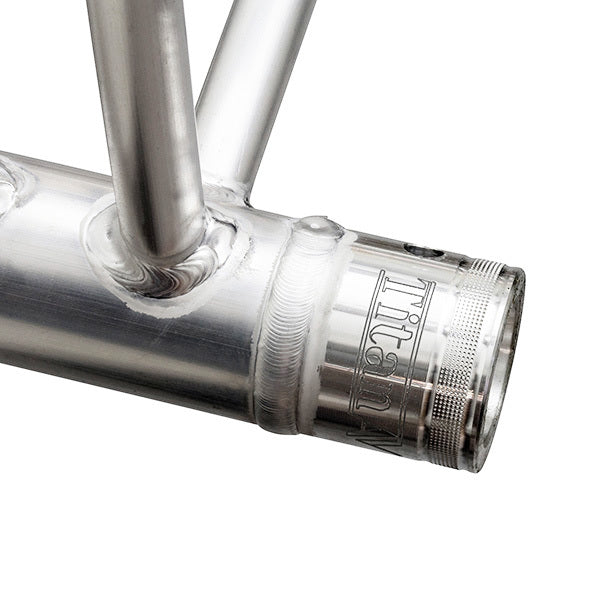

Thanks to the innovative conical coupling system the 290 Tri truss is fast and easy to assemble. Tri truss is available in multiple lengths, a range of corners, a range of mounting and adapter accessories and base plates. This style of 290mm trussing is also available in Box/square and flat/ladder profiles.

Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.

Tri Truss Features:

  • Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
  • Set of spigots (conical couplers) and pins included in sale (3 x Spigots, 6 x Pins & 6 x Clips)
  • Rigging applications: Video walls, moving heads, heavy lighting applications, display panels, signage & curtains
  • Event application: Stage production, Venues, Exhibitions, Clubs & Churches
  • Custom colours available (Powder coating), contact Titan AV team for a quote
  • Warranty: 2 years

Tri Truss Specifications:

  • Length: 3m
  • Weight: 15 kg
  • Material: 6082-T6 Aluminium
  • Main tube: 50 x 2mm
  • Braces: 20 x 2mm
  • 1 x 3m 290 Tri Truss


Tri Truss Load Table

Span Uniformly Distributed Load (UDL) Deflection Centre Point Load (CPL) Deflection
M KG/M MM KG MM
1 243.6 9.4 233.0 6.3
2 121.8 18.8 222.9 12.7
3 81.2 28.2 212.8 19.0
4 60.9 37.6 202.6 25.3
5 48.7 47.1 192.5 31.7
6 40.6 56.5 182.4 38.0
7 34.8 65.9 172.3 44.3
8 30.5 75.3 162.1 50.6
9 27.1 84.7 152.0 57.0
10 24.4 94.1 141.9 63.3
11 22.1 103.5 131.7 69.6
12 20.3 113.0 121.6 76.0
