Titan AV 4.1m Winch Up Lighting Truss Stand, Tripod

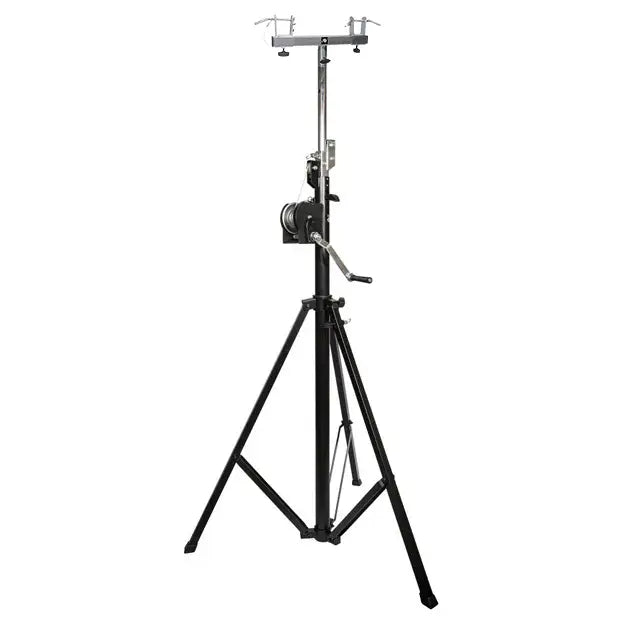

This D-XL566 tripod winch up tower-lift with D-XL290A 290 Truss adapter mount  is a necessity when maximum lighting coverage is need, lifting lighting up high will drastically improve the lighting effects on stage. Features include steel construction, 4.1m maximum height, winch and powder coated black. Perfect for use with most lighting brands and styles. Ideal for use in the following venue applications: schools, theatres, clubs, bars, conference facilities, entertainment venues, studios, home tuition and practice.

Features:

• All Steel parts including clamp
• High quality metal safety pins
• Winch has built in clutch & fold down handle
• Non-slip rubber feet
• Easy fold up and down
• Compact for transportation
• Stylish & ergonomic
• Warranty: 12 months

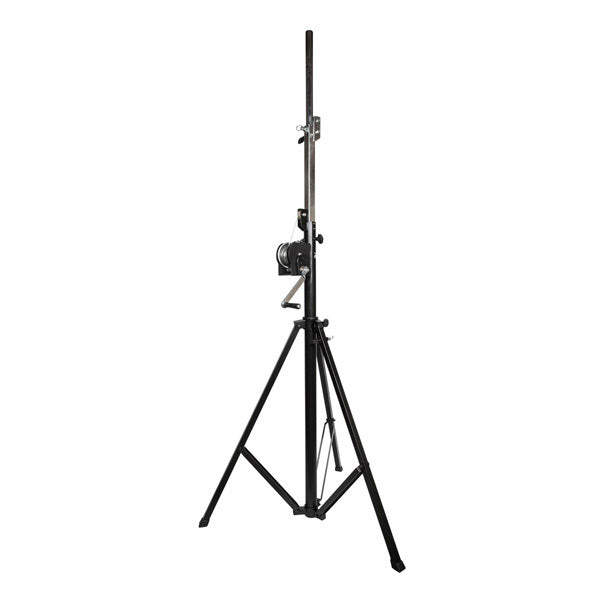

D-XL566 Tripod Specs:

• Adjustable foot print (3 settings): 86-125cm
• Length adjustment on one leg for un-level ground: 10cm, 1.5cm increments by 8 points
• Mounting pole: 35mm
• Height adjustment: 170-410cm
• Fold down size: 166 x 22 x 29cm (H x W x D)
• Max loading weight: 80 kg
• Material: Steel
• Colour: Black
• Weight: 25 kg
• 1 x Titan AV Winch up stand/tower lift

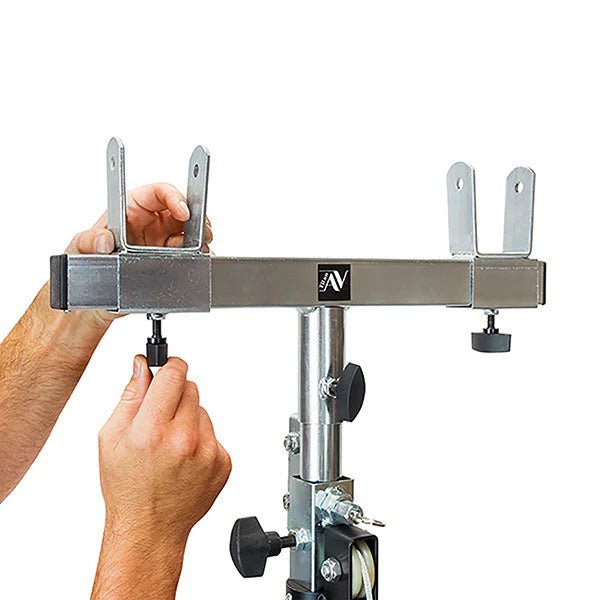

D-XL290A truss mount Specs:

• Max loading weight: 80 kg
• Adjustable width: 185mm - 410mm 35mm Insert
• Material: Steel
• Colour: Chrome Steel Finish
• Weight: 2 kg
• 1 x Titan AV Truss Cradle
