Titan AV 400mm Box Truss LED Wall Frame 3.8m(H) x 6.8m(W)

Kindly be aware that this item is available for special order. Feel free to reach out to our sales team at sales@titanav.co for additional details.

5 chord 400mm Box trussing arch frame is ideal for hanging entertainment and media devices such as LED screens, display panels, signage, or curtains.

The extra chord runs down the centre on one side of the truss, thus allowing for a quick way to safely rig heavy line loads such as video walls. Not only does this 5th chord improve rigging speed and safety it also provides a very clean and tidy look to your stage or presentation. When using the 5 Chord truss in this type of application the ease and time of setup is reduced drastically without unbalanced load issues.

Sold as a kit for indoor & outdoor use, kit includes upright poles (400mm box truss), cube corners(400mm box truss), cross bar(400mm 5-chord box truss), truss legs (400mm box truss), bracing tubes (Tube truss) and all spigots, pins & clips.

Certifications and compliance, safety is number 1 in our industry and with that said we call upon independent inspection and testing company Alfa Test (ISO17025 compliant & Nata Accreditation). Alfa test conduct all necessary testing to ensure Titan AV truss systems comply with Australian engineering standards. For further information on materials and testing please refer to attached truss data sheet.

Features:

• Australian Engineering Certification (Independently tested, ISO17025 Laboratory tested)
• 400mm 5-Chord truss, ideal for LED video wall and moving heads
• Perfect for LED Video wall, stage production, DJ, Band, Lighting applications, Pubs, Clubs, Churches, Schools, Shop displays and exhibitions
• Truss packages are completely customisable, contact the Titan AV Team to see what we can do for you
• Indoor & Outdoor use (Always check with a structural Engineer for outdoor builds)
• Warranty: 2 years

Specs:

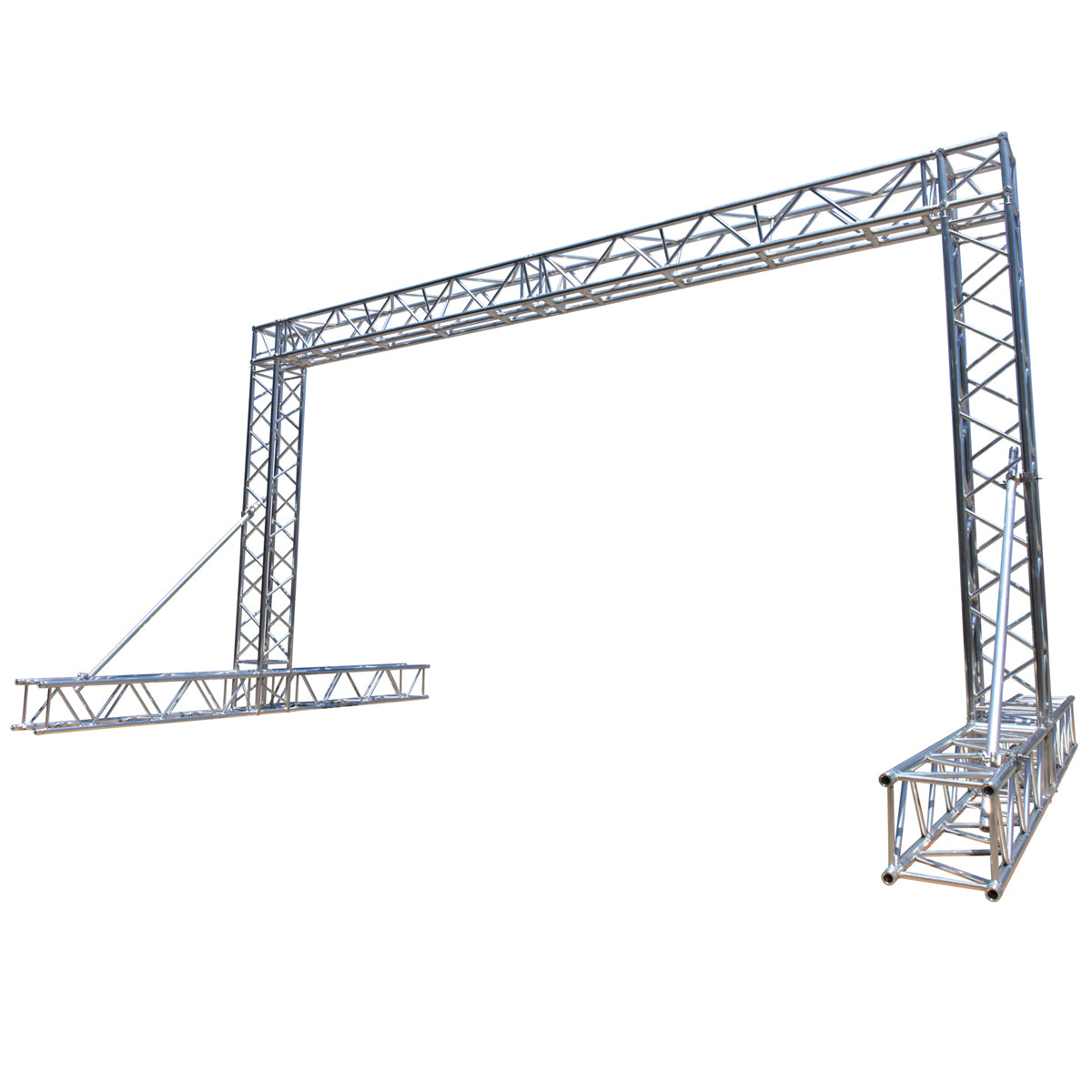

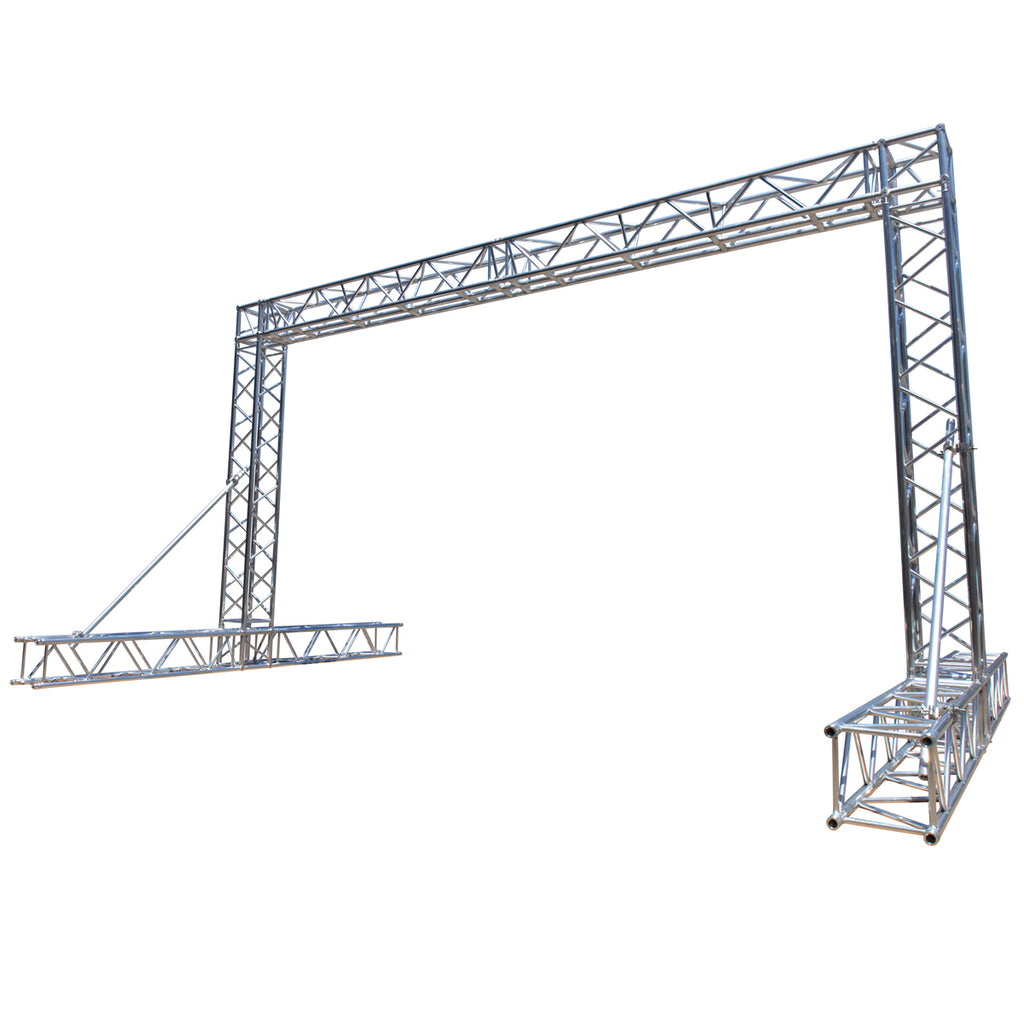

• Aluminium LED video wall Truss Frame 3.8m (H) x 6.8m (W)
• 400mm Box Truss & Truss Truss:
• Material: 6082-T6 Aluminium main tube: 50x2mm, braces: 25x3mm
• 5 Chord 400mm Box Truss:
• Material: 6082-T6 Aluminium main tube: 50x4mm, braces: 25x3mm
• Height: 3.8m (3.4m Clearance)
• Width: 6.8m (6m Clearance)

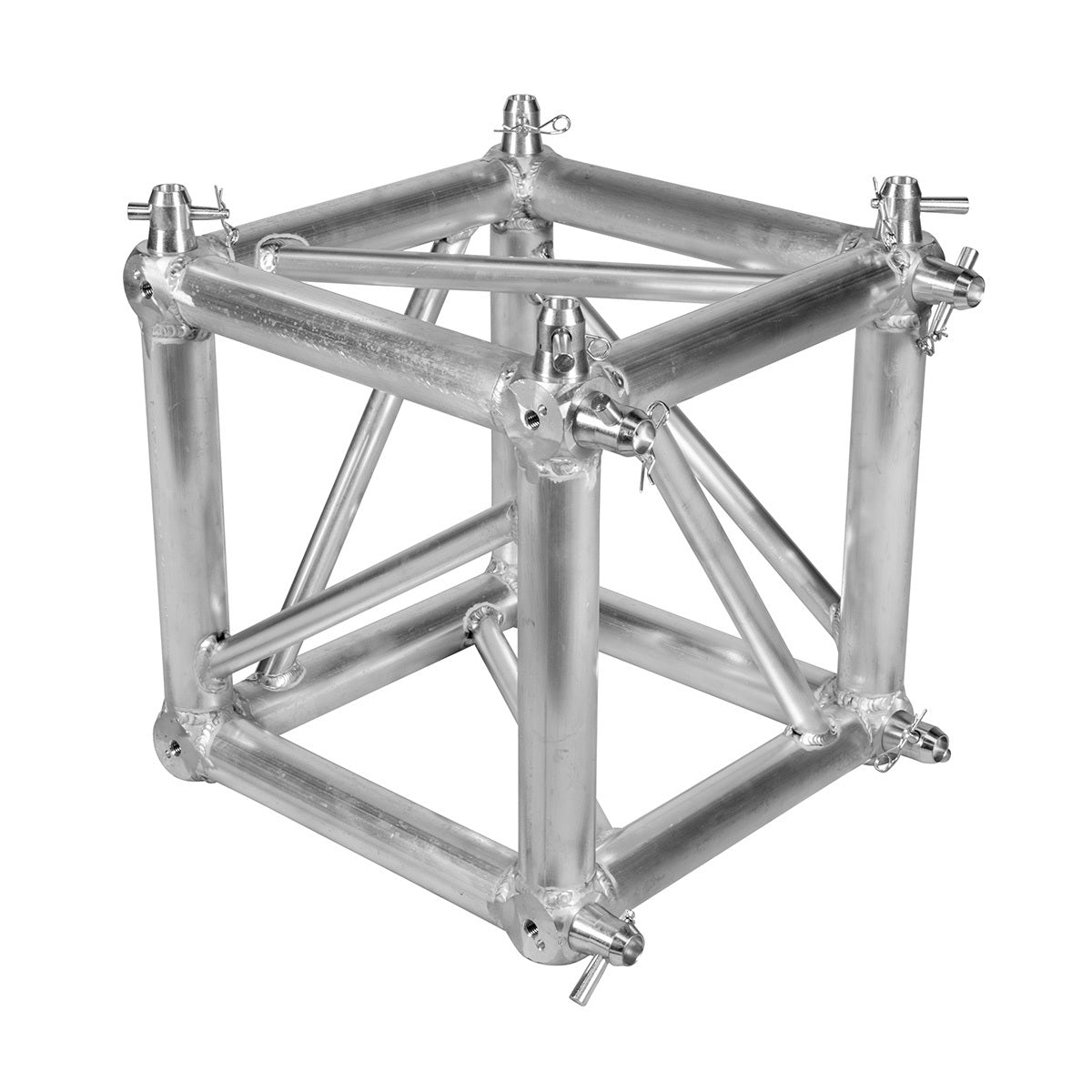

• 4 x 400mm Box Truss cube corners

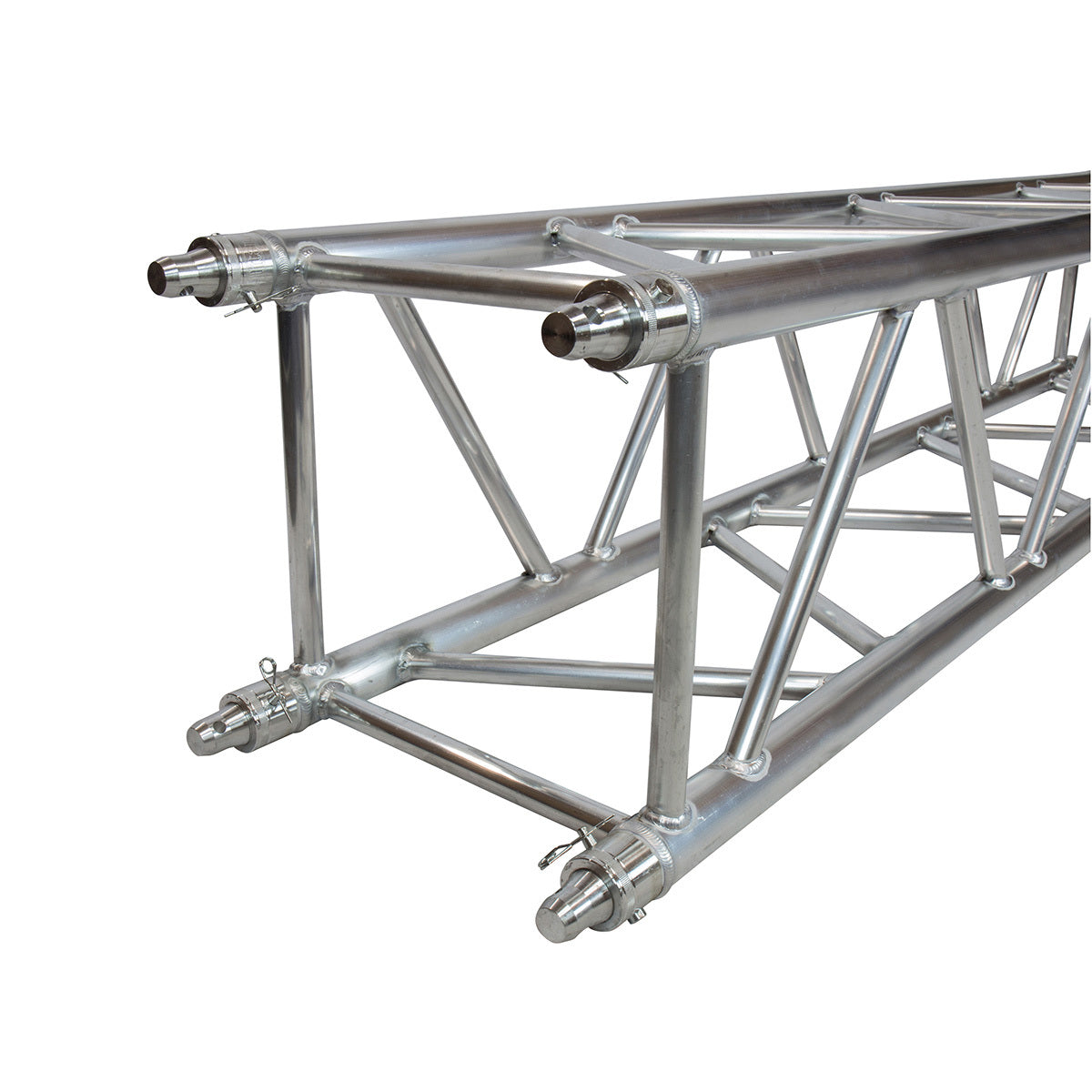

• 2 x 3m 400mm 5-Chord Box Truss lengths

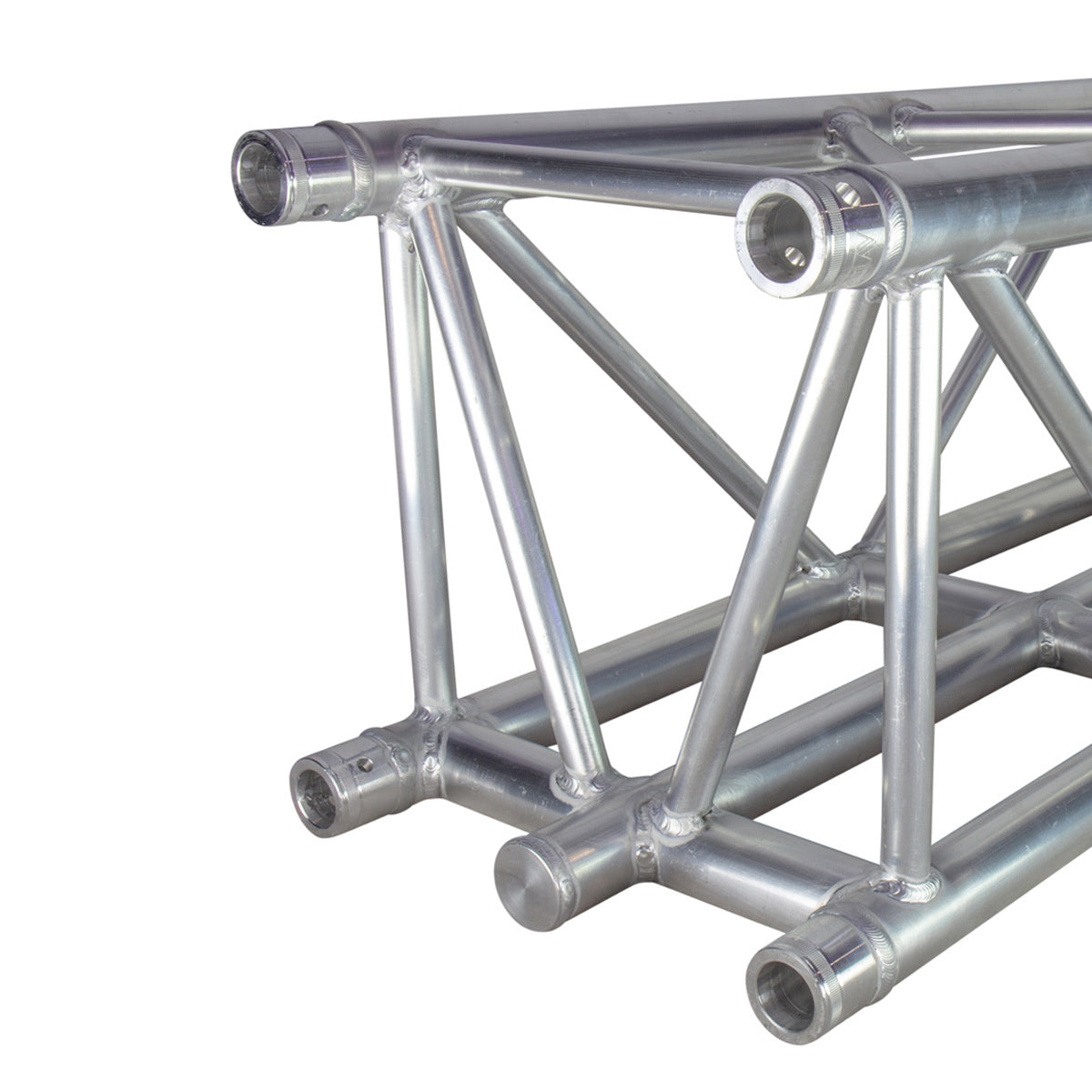

• 2 x 3m 400mm Box Truss lengths
• 4 x 2m 400mm Box Truss lengths

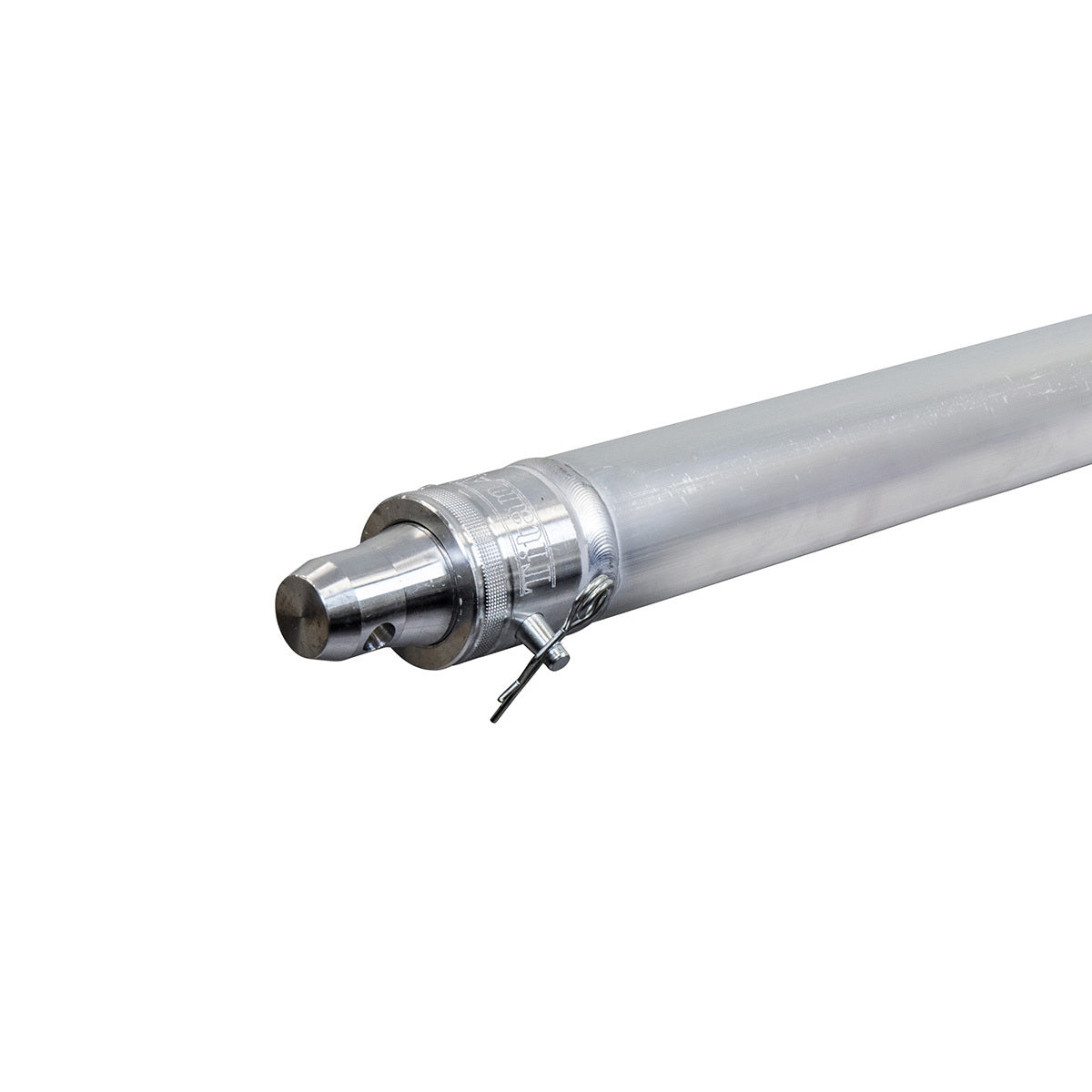

• 2 x 2.5m Truss tubes

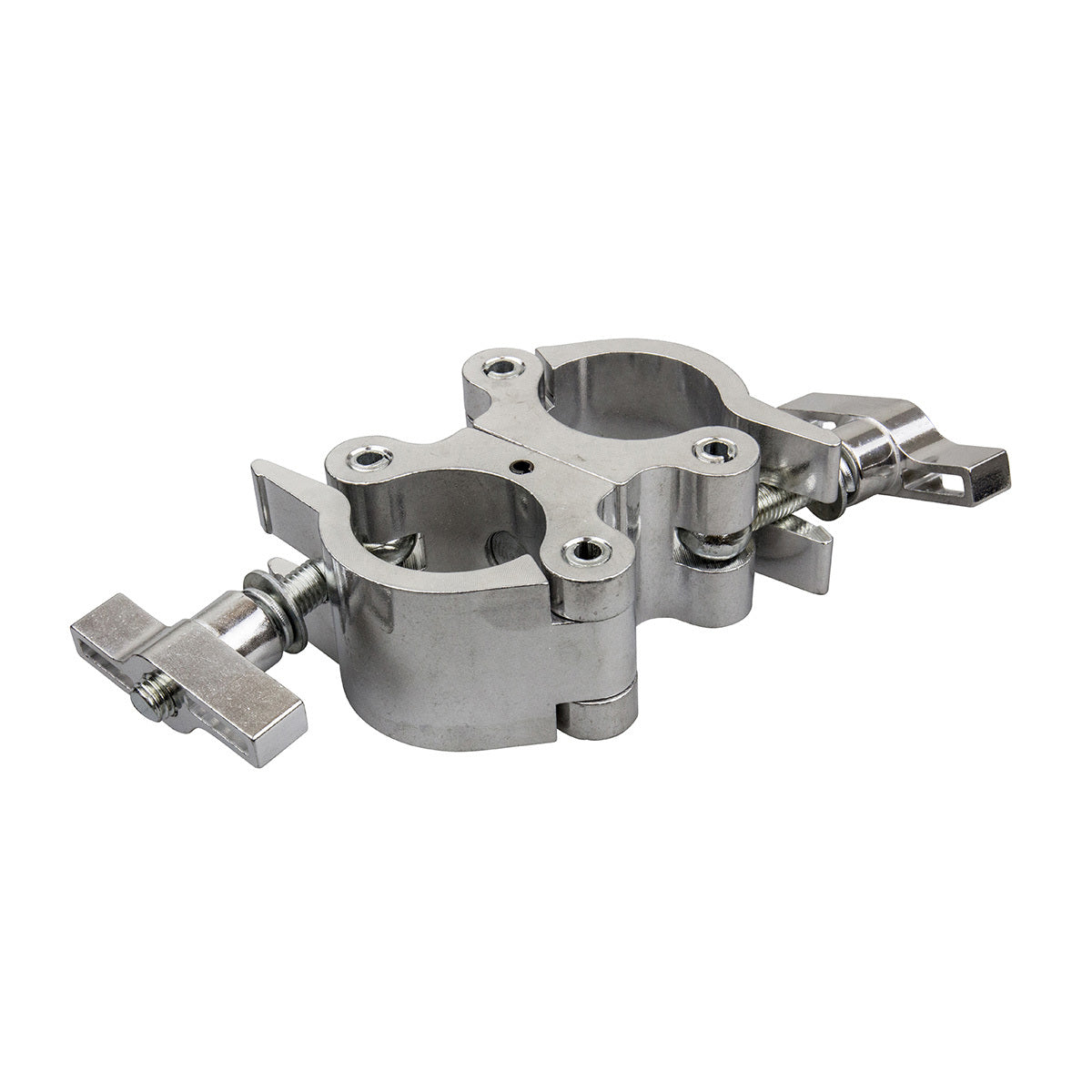

• 4 x Double coupler clamps
• All spigots included
